价 格
订货量
￥0.50
100 - 2999
￥0.45
价格为商家提供的参考价，请通过"获取最低报价"
获得您最满意的心理价位~
≥3000
| 产品特性：LED非隔离 | 品牌：昂宝 | 型号：OB3619AMP |
| 类型：驱动IC | 驱动芯片类型：非隔离驱动 | 针脚数：6 |
| 用途：LED电源 | 封装：SOT23-6 | 系列：非隔离高PF |
| 功率：80W | 批号：2025+ | 特色服务：提供技术样品支持，一级代理 |

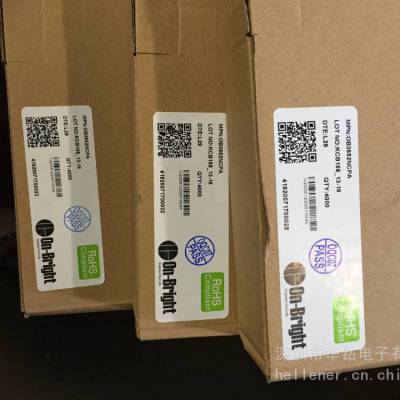

| 产品说明：原厂原装 | 包装：3000PCS/盘 | 应用领域：照明电子 |
深圳市华钻电子有限公司（兆瑞芯）代理昂宝全线产品反激式转换器/控制器 功率因素校正控制器 同步整流芯片 协议芯片 LED照明驱动芯片
LED背光芯片 无线/物联网控制 D类音频放大器 单片机 数模混合芯片 非隔离降压芯片 DC/DC芯片
一: LED照明驱动芯片 138.2356.1151
AC/DC低PF非隔离方案
| Part Number | MOS BVdss | Topology | Input Voltage Range | CC/CV | PF | Max. Output Power |
| OB5622x | 500V | Buck | 175~264Vac | CC | >0.5 | 30W |
| OB5622Ax | 500V | Buck | 175~264Vac | CC | >0.5 | 23W |
| OB5628x | 500V | Buck | 175~264Vac | CC | >0.5 | 16W |
| OB3626x | 500V | Buck | 90~264Vac | CC | >0.5 | 34W |
AC/DC高PF非隔离方案
| Part Number | MOS BVdss | Topology | Input Voltage Range | CC/CV | PF | THD | Max. Output Power |
| OB5617x | 650V | Buck | 176~264Vac | CC | >0.9 | <15% | 18W |
| OB3619A | External | Buck | 90~264Vac | CC | >0.9 | <15% | 80W |
| OB3619C | External | Buck | 90~264Vac | CC | >0.9 | <15% | 80W |
| OB3619Ex | 600V/650V | Buck | 90~264Vac | CC | >0.9 | <15% | 43W |
| OB3615x | 500V/600V/650V | Buck | 90~264Vac | CC | >0.9 | - | 32W |
| OB3611x | 500V/650V | Buck | 90~264Vac | CC | >0.7 | - | 32W |
AC/DC高PF隔离方案
| Part Number | MOS BVdss | Topology | Input Voltage Range | CC/CV | PF | THD | AC OVP/ UVP | Max. Output Power |
| OB3639A | External | Flyback/ Buck-boost | 90~350Vac | PSR CC | >0.9 | <10% | yes | 80W |
| OB363*** | External | Flyback/ Buck-boost | 90~277Vac | PSR CC | >0.9 | <10% | no | 80W |
| OB3635Ex | 600V/650V | Flyback/ Buck-boost | 90~277Vac | PSR CC | >0.9 | <10% | no | 42W |
| OB3330X | External | Flyback/ Buck-boost | 90~277Vac | PSR CC | >0.9 | <20% | no | 80W |
| OB3392K | External | Flyback/ Buck-boost | 90~277Vac | PSR CC | >0.9 | <20% | no | 60W |
| OB3636A | External | Flyback/ Buck-boost/Buck | 90~277Vac | PSR CV | >0.9 | <10% | no | 80W |
| OB3636Ax | 650V | Flyback/ Buck-boost/Buck | 90~277Vac | PSR CV | >0.9 | <10% | no | 20W |
| SN03A | External | Flyback/Buck-boost | 90~277Vac | SSR CV | >0.9 | <20% | no | 80W |
AC/DC低PF隔离方案
| Part Number | MOS BVdss | Topology | Input Voltage Range | CC/CV | PF | Max. Output Power |
| OB5682x | 600V/650V | Flyback/ Buck-boost | 90~264Vac | PSR CC | >0.5 | 24W |
| OB3652x | 600V/650V/700V | Flyback/ Buck-boost | 90~264Vac | PSR CC | >0.5 | 18W |
| OB3398 | External | Flyback/ Buck-boost | 90~264Vac | PSR CC/CV | >0.5 | 80W |
| OB3398Ex | 600V/650V | Flyback/ Buck-boost | 90~264Vac | PSR CC/CV | >0.5 | 34W |
| OB3399 | External | Flyback/ Buck-boost | 90~264Vac | PSR CC/CV | >0.5 | 80W |
| OB3399x | 600V/650V | Flyback/ Buck-boost/Buck | 90~264Vac | PSR CC/CV | >0.5 | 44W |
| OB3655 | External | Flyback/ Buck-boost/Buck | 90~264Vac | PSR CC | >0.5 | 80W |
| OB3655x | 650V | Flyback/Buck-boost | 90~264Vac | PSR CC | >0.5 | 40W |
AC/DC高PF无频闪方案
| Part Number | MOS BVdss | Topology | Input Voltage Range | CC/CV | PF | THD | Max. Output Power/Current | |
| OB3678+OB3655 | OB3678x | 500V | PFC | 176~264Vac | PSR CC | >0.9 | <10% | 60W |
| OB3655 | External | Flyback/ Buck-boost | 80W | |||||
| OB3655x | 650V | Flyback/ Buck-boost | 40W | |||||
| OB3678+OB3605x | OB3678x | 500V | PFC | 176~264Vac | CC | >0.9 | <20% | 60W |
| OB3605x | 500V | Buck | 52W | |||||
| OB3671 | OB3671A | External | 100/120Hz ripple removing driver | - | - | - | - | 1A |
| OB3671Ax | 100V | - | - | - | - | 350mA | ||
| OB3677 | OB3677x | 80V/40V | - | - | - | - | 150mA | |
| OB3679 | OB3679B | 40V | - | - | - | - | 30mA |
AC/DC可控硅调光方案
| Part Number | MOS BVdss | Topology | Input Voltage Range | PF | THD | Max. Output Power/Current | |
| OB3332 | OB3332x | 300V/500V/600V/650V | Buck/Buck-boost | 90~132Vac/176~264Vac | >0.9 | - | 17W |
| OB3332Ax | 300V/500V/650V | 90~132Vac | >0.9 | 16W | |||
| OB3332Bx | 500V/650V | 176~264Vac | >0.7 | 18W | |||
| OB3335 | OB333*** | External | Buck-boost/Flyback | 90~132Vac | >0.9 | <10% | 25W |
| OB333***x | 500V | 11W | |||||
| OB3336 | External | Buck-boost/Flyback | 176~264Vac | >0.9 | <20% | 30W | |
| OB5655 | 500V | Linear | 90~132Vac | >0.7 | - | 70mA | |
| OB5656 | 500V | Linear | 90~132Vac | >0.9 | - | 100mA |
AC/DC PWM调光方案
| Part Number | MOS BVdss | Topology | Dimming Mode | Input Voltage Range | CC/CV | PF | THD | Max. Output Power/Current | |
| OB3338 | OB3338 | External | Flyback/ Buck-boost | PWM to analog | 90~277Vac | PSR CC | >0.9 | <10% | 80W |
| OB3338B | External | Flyback/ Buck-boost | >0.9 | <10% | 80W | ||||
| OB3338C | External | Flyback/ Buck-boost | >0.5 | - | 80W | ||||
| OB3337 | External | Buck | PWM to analog | 90~277Vac | CC | >0.9 | <20% | 80W | |
| OB360***x | 500V | Buck | PWM | 90~277Vac | CC | >0.5 | - | 52W | |
| OB3600 | External | Buck | PWM | 90~277Vac | CC/CV | >0.5 | - | 80W |
DC/DC PWM调光方案
| Part Number | MOS BVdss | Topology | Dimming Mode | CC/CV | Max. Output Power/Current | |
| OB3375 | OB3375 | External | Buck | PWM and PWM to analog | CC | 300W |
| OB3375x | 100V/150V/200V | 100W |
LED背光芯片
| Part Number | MOS BVdss | Topology | Input DC Voltage Range | Dimming Mode | Operation Frequency | Channels |
| OB3350 | External | Boost | 9~30V | PWM | 200KHz | 1CH |
| OB3350E | External | Boost | 9~30V | PWM | 100KHz | 1CH |
| OB3350L | External | Boost | 9~30V | PWM | 125KHz | 1CH |
| OB3350G | External | Boost | 9~30V | PWM | 200KHz | 1CH |
| OB3352 | External | Boost | 9~30V | PWM | 150KHz | 1CH |
| OB3352B | External | Boost | 9~35V | PWM | 200KHz | 1CH |
| OB3352L | External | Boost | 9~30V | PWM | 125KHz | 1CH |
| OB3353A | External | Boost | 9~30V | PWM to analog | 120KHz | 1CH |
| OB33510 | 100V | Boost | 9~30V | PWM to analog | 120KHz | 1CH |
| OB3351 | External | Boost | 9~35V | PWM and PWM to analog | 100KHz~300KHz | 1CH |
| OB3351F | External | Boost | 9~35V | PWM and PWM to analog | 100KHz~300KHz | 1CH |
| OB3351Fx | 100V/180V | Boost | 9~35V | PWM and PWM to analog | 100KHz~300KHz | 1CH |
| OB3358 | 60V | Boost | 9~30V | PWM and PWM to analog | 120KHz | 1CH |
| OB3363(A) | External | Boost | 6~40V | PWM | 100KHz~300KHz | 4CH/ |
| 60V/170mA | ||||||
| OB3363T | External | Boost | 6~40V | PWM or PWM to analog | 100KHz~600KHz | 4CH// |
| 60V/170mA | ||||||
| OB3364 | External | Boost | 6~40V | Analog and PWM | 100KHz~600KHz | 4CH/ |
| 60V/220mA | ||||||
| OB3365 | External | Boost | 9~30V | PWM or PWM to analog | 100KHz~300KHz | 4CH/ |
| 90V/350mA | ||||||
| OB3365C | External | Boost | 9~30V | Analog and PWM | 100KHz~300KHz | 4CH/ |
| 90V/350mA | ||||||
| OB3375 | External | Buck | 9~30V | PWM and PWM to analog | up to 230KHz | 1CH |
| OB3375x | 100V/150V/200V | Buck | 9~30V | PWM and PWM to analog | up to 230KHz | 1CH |
| OB3334A | External | Flyback PFC | AC90~264V | PWM to analog | up to 100KHz | 1CH |
反激式转换器/控制器
Product | Applications |
OB2514X | AC/DC Primary-side Power Switch，double windings, Integrated BJT |
OB2513X/OB2511X/OB2516X | AC/DC Primary-side Power Switch, Integrated BJT |
OB2500/02X | AC/DC Primary-side Power Switch, Integrated MOSFET |
OB2530X | AC/DC Primary-side Power Switch, Integrated MOSFET |
OB257X | AC/DC Primary-side Power Switch, Integrated MOSFET |
OB237X | AC/DC Primary-side Power Switch, Integrated MOSFET, 30mW standby |
OB2510x | AC/DC Primary-side Controller, Driver BJT |
OB2550X | AC/DC Primary-side Controller, Driver MOSFET |
OB2305x | AC/DC Primary-side Controller, Driver MOSFET, 30mW standby |
OB2560x | AC/DC Primary-side Controller, Driver MOSFET |
OB2371/2/3/4 | AC/DC Primary-side CCM/QR mode Controller |
OB2506X | AC/DC Primary-side CC and Secondary-side CV Power Switch |
OB236X | AC/DC PWM Controller |
OB263X | AC/DC PWM Controller and Power Switch |
OB271X | AC/DC PWM Controller |
OB273X/5X/7X | AC/DC PWM Controller |
OB2273X | AC/DC PWM Controller |
OB2262/63X | AC/DC PWM Controller |
OB2268/69/79X | AC/DC PWM Controller |
OB2280/81/83/87/88 | AC/DC PWM Controller |
OB233X | AC/DC PWM Power Switch |
OB5222/24/25 | AC/DC PWM Controller |
OB528X | AC/DC PWM Controller with Brownout |
OB5269/B | AC/DC PWM Controller with HV Start-up |
OB5282/83 | AC/DC PWM Controller |
?OB3840?? | AC/DC PWM Controller |
